Correctly configuring your slicer is one of the core steps you need to take to ensure that your print comes out as it is supposed to. Unfortunately, this isn’t always easy due to the large amounts of different settings slicers have.
Considering that there are so many slicers, printers, and filaments to choose from, finding the correct information about slicer settings can be quite hard due to the difference they show depending on your setup, making the process of configuring everything correctly a chore.
As we can’t cover everything at once, we have decided to dedicate today’s article to configuring the printhead settings on Cura, a topic that isn’t easy to find information about even though it’s a vital setting on one of the most widely used slicers.
So, what are the printhead settings on Cura, and how do you configure them correctly?
Cura printhead settings are distance values that allow the slicer to keep objects separated from each other when the print sequence setting is set to “one at a time” mode.
To configure the Cura printhead settings correctly, you will need to measure the horizontal distances between the edges (left, right, front, rear) of the printhead and the tip of the nozzle, alongside the vertical distance between the build plate and the gantry.
Now, let’s go into greater detail about why it’s vital to configure the printhead settings correctly on Cura, the problems that could occur if you don’t configure these values, and the steps you should take for proper configuration.
Table of Contents

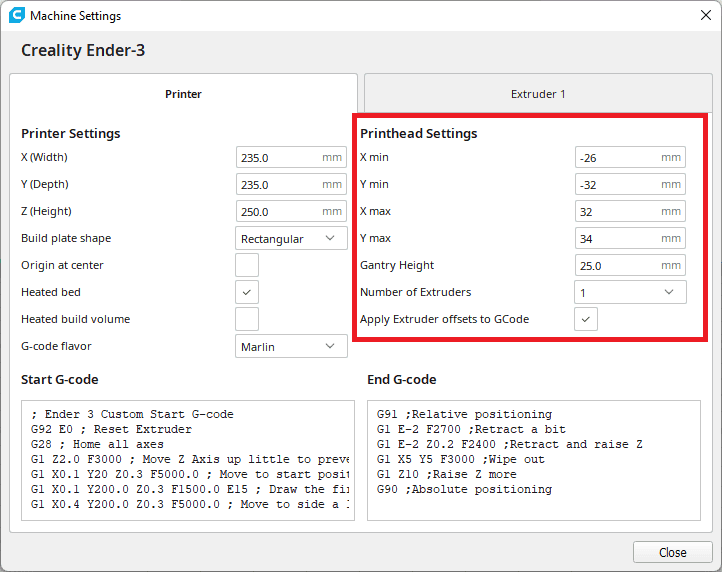

What Are Cura Printhead Settings?
Cura printhead settings are parameters that allow the slicer to separate each object from one another during the printing process when configured correctly.
Let’s take a closer look at these five parameters and see what each of them means.
- X min (mm) – The X min parameter refers to the horizontal distance between the nozzle and the left edge of the printhead.
- Y min (mm) – The Y min parameter refers to the horizontal distance between the nozzle and the front edge of the printhead.
- X max (mm) – The X max parameter refers to the horizontal distance between the nozzle and the right edge of the printhead.
- Y max (mm) – The Y min parameter refers to the horizontal distance between the nozzle and the rear edge of the printhead.
- Gantry height (mm) – The gantry height parameter refers to the vertical distance between the build plate and the gantry that holds the printhead.
While these values are not taken into account when you set the print sequence to all at once, they become mandatory if you intend on using the one at a time mode which causes your 3D printer to print sequentially.
Sequential printing is the mode that causes your printer to complete printing the entirety of an object before moving on to the next one, unlike continuous printing, where the printer conducts the printing process on a layer-by-layer basis.
In a nutshell, printhead settings are necessary for the printer to guide the printhead correctly during sequential printing.
If you don’t configure these parameters correctly, the printhead might crash into one of the models during print and possibly cause damage to both the printhead and the model.
Now that we have talked about why the printhead settings are significant – let’s get down to configuring these values correctly.
How to Configure Cura Printhead Settings?
To configure the Cura printhead settings, you will need a caliper (or a ruler) to measure the distance values you will be inputting into the slicer.
We recommend using a caliper as the measurements you take will be cleaner and less prone to error.
Here are how you can configure each of the printhead parameters.
- X min – Measure the horizontal distance between the left edge of the printhead and the nozzle, and input the value (in millimeters) into Cura.
- Y min – Measure the horizontal distance between the front edge of the printhead and the nozzle, and input the value (in millimeters) into Cura.
- X max – Measure the horizontal distance between the right edge of the printhead and the nozzle, and input the value (in millimeters) into Cura.
- Y max – Measure the horizontal distance between the rear edge of the printhead and the nozzle, and input the value (in millimeters) into Cura.
- Gantry height – Measure the vertical distance between the build plate and the gantry that holds the printhead, and input the value (in millimeters) into Cura.
If you plan on a ruler to measure the distances, ensure that you hold the ruler at a right angle to obtain the correct values. If the ruler is angled, the values you get will be greater than the actual distance.
As you can see, configuring the printhead settings is one of the easiest things to do and won’t take longer than 5 minutes of your time.
Ender 3 V2 Cura Printhead Settings
We want to share the optimal printhead settings values for the default Ender 3 V2 build to make things easier for the owners of this printer, as it’s a printer that is widely used by both beginners and enthusiasts alike.
Here are the Cura printhead settings for Ender 3 V2.
- X min – -26mm
- Y min – -32mm
- X max – 32mm
- Y max – 34mm
- Gantry height – 25mm
That being said, the best thing to do is to take your own measurements if you can and cross-check with these values to ensure that everything is as it should be.
What Is the Printhead in 3D Printers?
The printhead is the part of the 3D printer where the hot-end resides.
A common misconception is that the extruder has to be located in the printhead. In reality, the extruder is located on the printhead only in the case of Direct Drive extruders, with Bowden extruders utilizing a PTFE tube that transfers the filament from the extruder to the hotend instead.
In a nutshell, you can think of the printhead as the part that houses the necessary equipment for the filament to come out.
Wrapping Up
While Cura printhead settings aren’t necessary if you are using the all at once (continuous printing) print sequence setting, they are absolutely vital for sequential printing (one at a time setting) to prevent crashes between the printhead and printed objects.
As all you have to do to get the printhead settings right is to measure a few distances (five to be exact) with the help of a caliper or a ruler, we can say that it’s one of the simplest settings to configure in Cura.
That being said, these values are pretty delicate (they are measured in millimeters), meaning that even the smallest error in measurement can cause you issues at some point.
Happy printing!
