The Ender 3 is a brilliant printer for many reasons, but the primary factor that made it the most popular 3D printer on the market is, without a doubt, is the price-to-performance ratio that comes from factors such as it being semi-assembled.
Unfortunately, the fact that Creality’s Ender 3 is only semi-assembled out of the box means that mechanical issues can occur more frequently due to inconsistencies that can take place in the process of manually assembling the printer, especially for those who are new to 3D printing.
Today, we will be analyzing a particular mechanical issue that troubles Ender 3 printers at times, known as the Z-axis binding issue in the 3D printing community, which prevents the 3D printer from printing the model correctly.
So, what is the Ender 3 Z-axis binding issue?
Ender 3 Z-axis binding is an issue where the Z-axis of the printer struggles to move or doesn’t move at all due to the Z rod, which is the part that the Z-axis motor spins to bring the Z-axis up and down, not being straight.
If your Ender 3 has the Z-axis binding issue, you will most likely face problems during the printing process, such as inconsistent prints and clicking sounds coming from the steppers.
In the upcoming sections of this article, we will take a deeper dive into the Ender 3 Z-axis binding issue, find the possible causes behind this problem, and finally, look at ways to fix the issue as efficiently as possible.
Table of Contents
What Is the Ender 3 Z-Axis Binding Issue?
The Ender 3 Z-axis binding issue is one of the more annoying problems in 3D printing due to how it affects the printing process, often rendering the printed model entirely unusable.
In a nutshell, the Ender 3 Z-axis binding is an issue that prevents the extruder from moving smoothly on the Z-axis, often characterized by the stepper motor struggling to spin the Z rod that is responsible for bringing the extruder up and down.
In more severe cases, the Z-axis binding issue can prevent the extruder from moving into some points of the Z-axis entirely, as the stepper motor won’t be able to spin the Z rod in that direction anymore.
If your Ender 3 has the Z-axis binding issue, you will most likely observe some of the following signs:
- Inconsistencies in the thickness of the layers due to the extruder not being able to move freely in the Z-axis
- Clicking sounds coming out of the Z-axis stepper motor due to it not being able to spin the Z rod smoothly
- Entirely failed prints (in more severe cases) due to the extruder attempting to print on top of the existing layers because of restricted movement
- Coupler vibrating due to the rod pushing into it as it spins
- Loud sounds coming from the coupler due to the rod trying to spin while the two are touching
How to Fix the Ender 3 Z-Axis Binding Issue?
Fortunately, the process of applying the appropriate fix to the Ender 3 Z-axis binding issue is not a technically challenging one by any means, meaning that once you are able to pinpoint the factor that’s causing it, the solution comes down to a pretty simple process that you can conduct in a few minutes.
The first step we recommend taking to fix the Ender 3 Z-axis binding issue is to loosen the screws of the coupler (which is the part that connects the Z-axis motor to the Z rod) and readjust the positioning of the Z rod to be straight within the coupler.
After ensuring that the Z rod sits perfectly straight within the coupler, carefully tighten the coupler screws once again while holding the Z rod in the straight position.
As the Z rod may skew during the screwing if you aren’t careful,make sure to hold it tightly while you tighten the coupler screws.
While the process of re-centering the Z rod should fix the Ender 3 Z-axis binding issue in most cases, here are some other things you can try if the problem persists:
- Clean the Z rod thoroughly to ensure that no dirt or grease is blocking the movement.
- Lube the Z rod to make it easier for the rod to turn within the coupler.

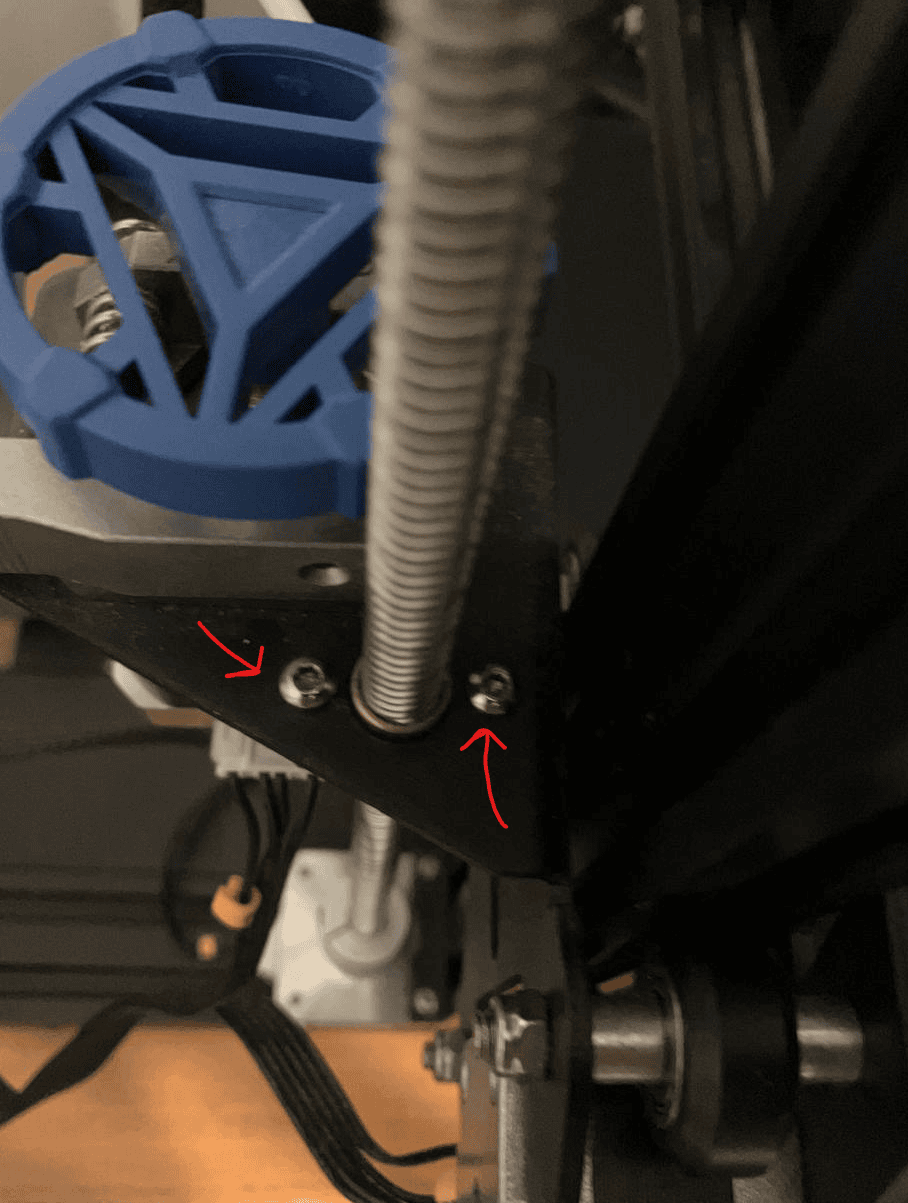

- Adjust the screws on the extruder mount plate.

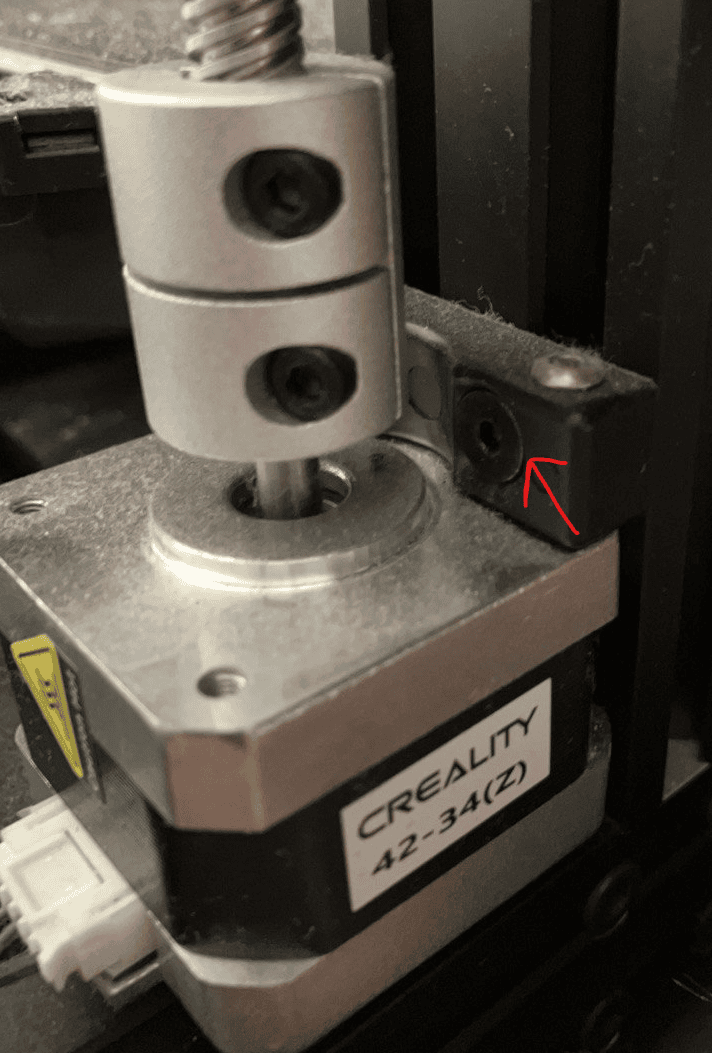

- Adjust the screws that hold the stepper motor.
- Replace the Z rod with a new one.
Since the primary goal is to ensure that the Z-axis motor can spin the Z rod freely, keep in mind that the Z rod should remain straight and aligned with the stepper motor after the adjustments you perform.
What Causes the Ender 3 Z-Axis Binding Issue?
Due to it being a purely mechanical issue, pinpointing the culprit behind the Ender 3 Z-axis binding issue is no simple task for most 3D printing enthusiasts who are starting their journey, making the problem even more annoying.
The most common cause behind the Ender 3 Z-axis binding issue is the Z rod not being positioned perfectly straight within the coupler, which is often the result of an error during the printer’s assembly.
Since the requirement to ensure that the Z rod sits straight in the coupler is easy to overlook, especially for users who assemble the Ender 3 for the first time, the Z-axis binding issue occurring isn’t too surprising.
In more rare cases, the Z-axis binding issue can also occur as a result of the following:
- Defective, misaligned extruder mount plate
- Dirt and grease on the Z rod
- Defective Z rod
As what essentially causes the Z-axis binding issue on the Ender 3 is the Z rod not being aligned with the stepper motor, anything that can cause a misalignment between these two components can contribute to the problem.
Wrapping Up
While the Ender 3 Z-axis binding issue looks complicated to fix as it’s pretty challenging to find out what causes the problem without prior experience, solving it should be a straightforward process once you know what to do.
To quickly recap, Z-axis binding is an issue where the Z rod of the Ender 3 being not straight restricts the movement of the printer’s Z-axis and can entirely prevent the Z-axis from moving in severe cases.
In most cases, loosening the screws of the coupler to readjust the positioning of the rod in a way to make it sit perfectly straight within the coupler should solve the Z-axis binding issue of your Ender 3 quickly and easily.
Happy printing!
