The usage of high temperatures is a significant part of the 3D printing process, as it’s the only possible way to bring the plastic to a state where it entirely liquefies by melting and can freely flow out of the nozzle onto the build plate.
On the other hand, due to the availability of many different 3D printers and filaments with different properties, combining the temperature capabilities of printers and the temperature requirements of filaments can become slightly confusing.
Today, our topic will be the maximum nozzle temperature capability of the Ender 3 – a vital factor to consider for 3D printing with different filament types and the safety of the printing process with an Ender 3 3D printer.
So, what is the maximum temperature Ender 3 (Pro/V2) can reach?
Even though the Ender 3’s heat block can technically reach 280 degrees Celsius, the maximum safe nozzle temperature for the stock Ender 3 hot-end is 240 degrees.
The reason behind this limitation is the material the Ender 3 stock hot-end is made out of, known as PTFE, which becomes unsafe at temperatures that exceed this figure.
Moving forward, we will analyze the temperature capabilities of Ender 3 in more detail, discuss how we can increase these capabilities, and find out which types of filament are possible to print with an Ender 3.
Table of Contents
What Is the Maximum Temperature Ender 3 (Pro/V2) Can Reach?
Knowing the maximum temperature your 3D printer can handle is a vital part of preparing for the 3D printing process, as the nozzle temperature that each filament requires is different.
The maximum temperature that the heat block of Ender 3 can reach is 280 degrees Celsius, but unfortunately, this doesn’t mean that you can print at this temperature without issues.
In fact, the effective maximum temperature you can safely reach with the stock hot-end of Ender 3 is 240 degrees Celsius, which is a limitation that comes from the material the stock hot-end is made of, which is PTFE; also known as Teflon.
So, how does the stock hot-end being made out of PTFE limit the maximum safe temperature of the Ender 3 by such a large margin compared to the temperature the heat block can reach?
PTFE, as a material, undergoes pyrolysis, where it starts decomposing and releases toxic fumes as a result, at 250 degrees Celsius, making it very unsafe to bring the stock hot-end of the Ender 3, which is made out of PTFE, to temperatures close to this level.
As a result, even if you can get your Ender 3’s nozzle temperatures over the limit of 240 degrees Celsius, we highly recommend staying below this limit for your safety.
How Can You Increase the Maximum Temperature of Ender 3 (Pro/V2)?
With some modifications to the hardware, it’s possible to increase the maximum nozzle temperature of your Ender 3 and make it possible to print more demanding types of filaments such as polycarbonate.
The most straightforward way to increase the maximum temperature capability of your Ender 3 is to replace the stock PTFE hot-end with an all-metal one, which will allow the hot-end to tolerate the whole temperature capacity of the heat block; 280 degrees Celsius.
Alongside replacing the hot-end with an all-metal one, we highly recommend replacing the stock heat block with one that can bear higher temperatures and the thermistor with a higher quality one that doesn’t have PTFE coating like the stock one, which should be the case by default in many instances as replacement hot-end kits come with all of these parts included.
Even though it’s not fully necessary to replace the heat block and the thermistor, we believe that it’s the responsible thing to do to avoid potential fire hazards that can arise due to pushing the stock heat block to its limit and potential hazards that can come from the PTFE in the stock thermistor.
While a more challenging and expensive process, another way to increase the maximum nozzle temperature of the Ender 3 is to replace the stock Bowden extruder altogether with a direct-drive extruder that comes with an all-metal hot-end.
Since switching to a direct-drive extruder practically means that you will be getting rid of the stock plastic extruder, the stock hotend with the PTFE lining inside, and also the PTFE tube, which only exists in Bowden extruders, you won’t have to worry about any temperature-related limits ever again.
As the firmware of your Ender 3 can have a maximum temperature limit to protect the hardware and prevent any dangerous situations from arising, you may also need to re-flash your Ender 3 with an updated version of the firmware where you have increased this limit.

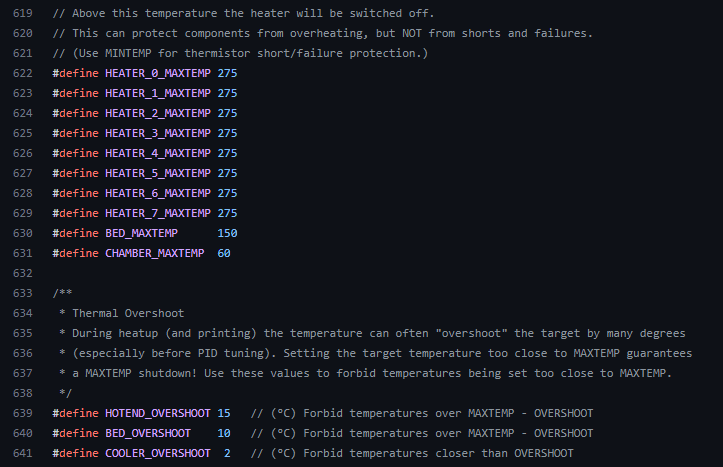

For instance, at the time of writing, the Marlin firmware has a nozzle temperature limit of 265 degrees Celsius, meaning that you won’t be able to set your Ender 3’s nozzle temperature above this limit even if the hardware supports it.
Does the Ender 3 (Pro/V2) Have an All-Metal Hot-End?
As there is quite a difference between the maximum temperatures that an all-metal and a PTFE hot-end can handle, knowing whether your 3D printer has an all-metal or a PTFE hot-end is extremely important.
Creality’s Ender 3 does not come with an all-metal hot-end by default, but it’s possible to replace the stock hot-end with an all-metal one, as there are multiple all-metal hot-end options that are compatible with the Ender 3.
As an all-metal hot-end can handle higher temperatures and is safer than the stock PTFE hot-end on the Ender 3, we highly recommend upgrading the hot-end of your Ender 3 whenever possible if you’re planning on printing with filaments that have high melting points.
Which Filaments Can You Print with Ender 3 (Pro/V2)?
While it’s not an issue for most popular filaments, the maximum temperature that a 3D printer can provide becomes a limiting factor for printing specialty filaments.
With the stock PTFE hot-end of the Ender 3, you can technically print popular filaments such as PLA, PETG, ABS, TPU, HIPS, and ASA without any problems, as the lower end of the nozzle temperatures these filaments require all fall below the limit of 240 degrees Celsius.
On the other hand, for filaments such as ABS and ASA, the higher end of the nozzle temperature range goes up to figures where the stock PTFE hot-end is not suitable for usage anymore, which makes upgrading to an all-metal hotend a good idea as these higher temperatures might be required for a successful print in some cases.
Finally, as exotic filaments, such as wood, metal, nylon, and polycarbonate, require higher temperatures and overall a higher quality of equipment, such as a better nozzle, you won’t be able to print them with the stock hot-end of the Ender 3.
Wrapping Up
Even though Ender 3’s maximum temperature with the stock hot-end is not sufficient to print all filament types possible, it’s more than enough in the majority of the scenarios as the filaments that require too high temperatures aren’t too necessary for most applications.
To quickly recap, while the Ender 3’s heat block can reach 280 degrees Celsius, the material the Ender 3 stock hot-end is made out of, known as PTFE, is a limiting factor that pulls the maximum temperature figure down to 240 degrees Celsius instead.
As PTFE undergoes a process called pyrolysis above the temperature of 250 degrees Celsius, where it starts sublimating and releasing toxic fumes, we highly recommend never going above the limit of 240 degrees Celsius with the stock hot-end (and the stock thermistor) under any circumstances.
Happy printing!
