3D printing is a very modding-heavy process, where it’s essentially possible to replace every single component of your 3D printer with a different one that has distinct attributes and capabilities, whether it’s an electrical component such as the stepper drivers or a mechanical one such as the nozzle.
Because of this, an important rule to remember is to ensure that the software configuration always matches the hardware of your 3D printer after every change you make, as in most cases, you will need to configure some parameters differently as a result of these hardware changes.
In today’s article, we will go through the process of optimally configuring Cura settings explicitly for a 0.6 mm nozzle, which we can consider to be a size that isn’t exactly common with most 3D printers shipping with 0.4 mm nozzles by default.
So, what are the optimal Cura settings for a 0.6 mm nozzle?
Below, you can find the main Cura parameters you will need to change after switching to a 0.6 mm nozzle from a differently-sized nozzle and the optimal values that correspond to each parameter:
- Line Width – 0.6 mm
- Layer Height – 0.28 mm
- Walls (Thickness & Line Count) – Automatically changed by Cura upon modifying Line Width
- Top/Bottom (Layer Thickness & Count) – Automatically changed by Cura upon modifying Layer Height
- Coasting – Volume: 0.216 mm^3 | Minimum Volume: 1.2 mm^3 | Speed: 90%
Moving forward, we will be looking into the optimal Cura settings for a 0.6 mm nozzle in greater detail, find out how to configure the Cura settings specifically for a 0.6 mm nozzle, and finally, quickly go through the advantages that a 0.6 mm nozzle brings to the printing process.
Table of Contents
What Are the Optimal Cura Settings for a 0.6 mm Nozzle?
As the amount of filament that can flow through each distinct nozzle size is entirely different, you will need to make adjustments to a handful of parameters to ensure optimal results after switching to a differently-sized nozzle for the first time.
Below, you can find the primary parameters you need to modify in Cura to print with a 0.6 mm nozzle, along with detailed explanations and values that we recommend:

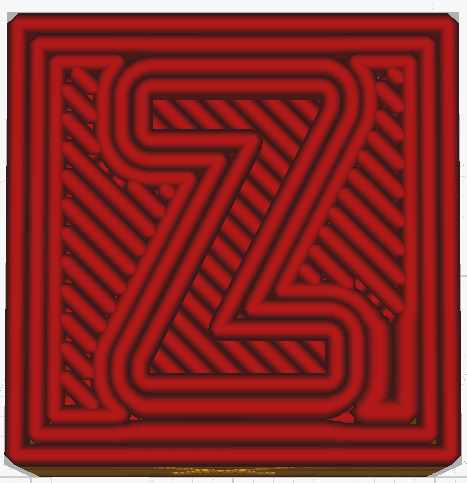

- Line Width – As the optimal line width value should always be between 100% and 120% of the nozzle size, it’s practically the first parameter that requires modification when switching to a differently-sized nozzle. We recommend using a value of 0.6 mm, which is equal to the nozzle size.

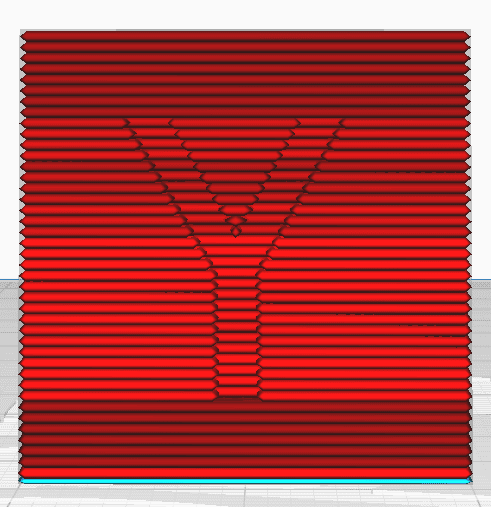

- Layer Height – The formula for an optimal layer height value is 0.25 * nozzle size < layer height < 0.75 * nozzle size, with larger values increasing the print speed and the lower values increasing the print quality. We recommend using a value of 0.28 mm for a balanced approach.
- Walls (Thickness & Line Count) – Cura will adjust the wall thickness value automatically based on the wall line count (wall line count * line width = wall thickness), meaning that there won’t be any need for changes here. A standard wall line count value of 2-4 will do.

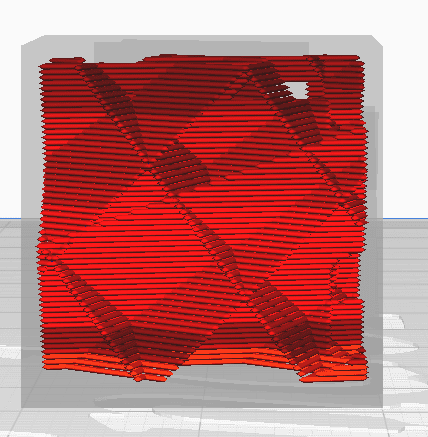

- Top/Bottom (Layer Thickness & Count) – Cura will adjust the top/bottom layer thickness value automatically based on the top/bottom layer count (top/bottom layer count * layer height = top/bottom layer thickness). A standard top/bottom layer count of 4-5 will do.
- Coasting – Cura suggests the Coasting Volume be equal to the value of nozzle size cubed, and the Minimum Volume Before Coasting to be larger than the Coasting Volume. We recommend using a value of 0.216 mm^3 for volume, 1.2 mm^3 for minimum volume, and 90% for speed.
While there will be other settings you will most likely need to modify, such as the nozzle temperature, due to the difference in the volume of filament coming out of the nozzle at any given time, we decided against including such parameters as they will vary based on the filament you use.
How to Configure Cura Settings Explicitly for a 0.6 mm Nozzle?
Due to the sheer number of differences in parameters between different nozzle sizes, configuring your 0.6 mm settings into a separate profile that you can use later is the best way to preserve and reload them whenever necessary.
Here is how you can configure Cura settings explicitly for a 0.6 mm nozzle:
- Navigate to the Prepare tab of Cura located on the top of the window.
- Click the pane in the middle to bring up the settings related to Nozzle Size and Material.
- Click the Nozzle Size dropdown menu, and choose the 0.6 mm option from the list.
- Click the pane on the right to bring up the print settings.
- Click the Custom button if visible. Else, skip this step.
- Configure the print settings with the optimal values for the 0.6 mm nozzle.
- Click the Profile dropdown menu, and choose the “Create profile from the current settings/overrides option.”
- Save the new profile with the custom name of your choice.
After following these steps, your customized profile will be available in the Profile dropdown list whenever you switch to the 0.6 mm nozzle size through the Nozzle Size dropdown, which you can activate to load the configuration.
What Advantages Does a 0.6 mm Nozzle Bring to the Print?
There are some considerable advantages that come with switching to a larger nozzle size based on the scenario, such as a 0.6 mm nozzle from a 0.4 mm nozzle, which, depending on your use case, can be highly beneficial to the printing process.
The primary benefit of using a larger nozzle, such as a 0.6 mm nozzle instead of the standard 0.4 mm, is a considerable decrease in the amount of time that it takes for the 3D printer to conclude the printing process, considering that the extruder can keep up with supplying the required amount of filament for it.
On the other hand, while the smaller nozzles will take a longer amount of time to print your 3D models, they will produce objects with higher quality, better detail, and easier-to-remove supports, which creates a trade-off, with smaller nozzles being more suitable for some scenarios, and vice versa.
Wrapping Up
Compared to the more popular nozzle size of 0.4 mm, which practically is what every suggestion you can find is based on, a 0.6 mm nozzle isn’t all that common, which makes finding the optimal values for every parameter slightly more challenging due to the lack of community data available.
To quickly recap, you will need to readjust the Cura parameters related to the nozzle size, such as line width, layer height, wall thickness, wall line count, top/bottom layer thickness and count (handled automatically by Cura), and if enabled, coasting, to print successfully with a 0.6 mm nozzle.
Since correctly configuring the print settings is highly situational, with each parameter creating a trade-off in factors such as the print time and the print quality, experimentation is the best way to find the values that will work best for you.
Happy printing!
